Starlit HeronMagnetic Day-Change Base Station is a geomagnetic data acquisition systemdesigned for applications requiring geomagnetic field data collection, such asgeological exploration.The systemcollects GNSS positioning data an...
Integrated optical pump, positioning module, data logger, and base station for magnetic field masurement.
The system collects GNSS positioning data and optically pumped magnetometer data, and synchronously stores the acquired data in both a database and text files. In addition, the system provides Web service and Bluetooth Low Energy (BLE) broadcasting.

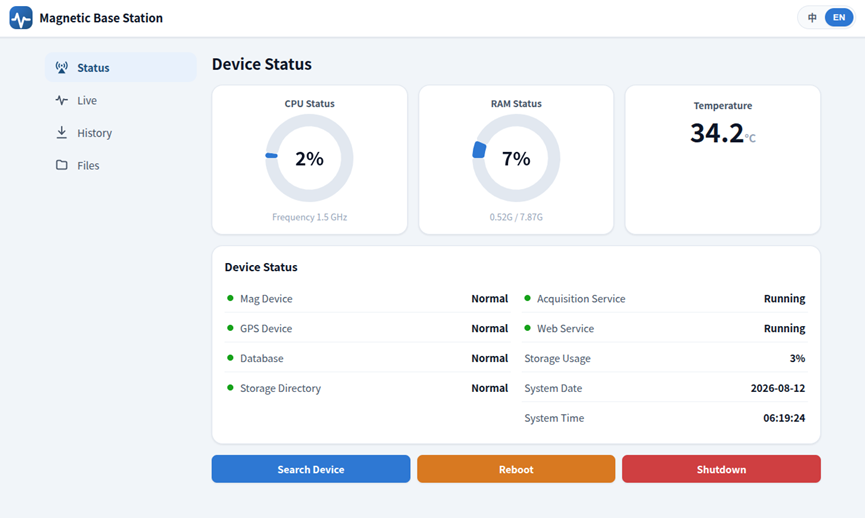

Positioning
Status: Displays the current operating status of
the positioning device. For ease of understanding, it is displayed as “GPS” in
the user interface.
Altitude: Displays the current GNSS positioning altitude, in meters (m).
Magnetic
Field: Displays the current magnetic field
intensity, in nanoteslas (nT).
Latitude and
Longitude: Displays the current position in terms
of longitude (E/W) and latitude (N/S), in degrees (°).
WebSocket
Connection Status (WS): Displays the status of the
real-time data connection between the browser and the device.
